Alloy Steel Pipes

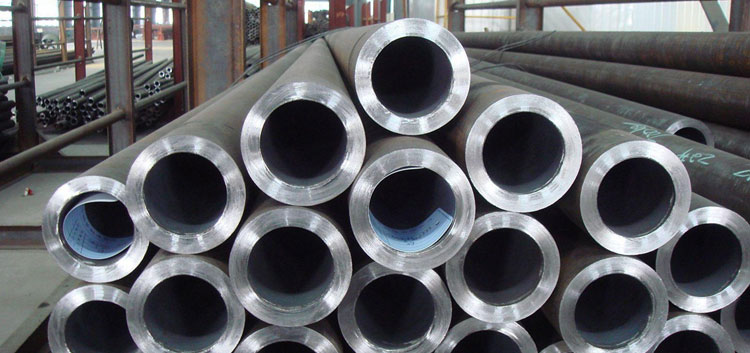

Seamless Alloy Steel Pipes
Hutzmann is a known manufacturer of AS Pipes, which is available in different sizes, shapes and designs to our well – regarded clients at market leading prices. We also offer the same in different grades such as Alloy Steel P1 Pipes, Alloy Steel P9 Pipes, Alloy Steel P5 Pipes, Alloy Steel P11 Pipes, Alloy Steel P12 Pipes, Alloy Steel P22 Pipes, Alloy Steel P17 Pipes, and Alloy Steel P91 Pipes. We use a range of transport partners to ship overnight these Alloy Steel Seamless Pipes within the foreign countries, and offer a full range of logistics solutions from priority express services to more cost – effective economy shipments all around the globe.
Alloy Steel P1 Pipe
Alloy Steel P1 Seamless Pipes Specifications |
||
| Specifications | : | ASTM A 335 ASME SA 335 |
| Dimensions | : | ASTM, ASME and API |
| Size | : | 1/8″NB TO 30″NB IN |
| Schedule | : | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Length | : | Within 13500mm |
| Type | : | Seamless / Fabricated |
| Form | : | Round, Hydraulic Etc |
| Length | : | Single Random, Double Random & Cut Length. |
| End | : | Plain End, Beveled End, Treaded |
Alloy Steel P1 Pipes Chemical Composition
| Alloy Steel P1 | C | Cr | Mn | Mo | P | S | Si |
| 0.05 – 0.15 | 1.00 – 1.50 | 0.30 – 0.60 | 0.44 – 0.65 | 0.025 max | 0.025 max | 0.50 – 1.00 |
Alloy Steel P1 Pipe Mechanical Properties
| Tensile Strength, MPa | Yield Strength, MPa | Elongation |
| 415 min | 205 min | 30 min |
Alloy Steel P5 Seamless Pipes
Alloy Steel Seamless Pipes (ASME SA335 Grade P5) offered by us are made available in ASME SA335 as well as P1, P5, P9, P11, P12, P91 grades. Our expertise lies in offering these in different sizes & schedules, with IBR & latest edition NACE MR 0175 reports.
Alloy Steel P5 Seamless Pipes Specifications |
||
| Specifications | : | ASTM A 335 ASME SA 335 |
| Dimensions | : | ASTM, ASME and API |
| Size | : | 1/8″NB TO 30″NB IN |
| Schedule | : | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Length | : | Within 13500mm |
| Type | : | Seamless / Fabricated |
| Form | : | Round, Hydraulic Etc |
| Length | : | Single Random, Double Random & Cut Length. |
| End | : | Plain End, Beveled End, Treaded |
Alloy Steel P5 Pipes Chemical Composition
| Alloy Steel P5 | C | Cr | Mn | Mo | P | S | Si |
| 0.05 – 0.15 | 4.00 – 6.00 | 0.30 – 0.60 | 0.45 – 0.65 | 0.025 max | 0.025 max | 0.50 – 1.00 |
Alloy Steel P5 Pipe Mechanical Properties
| Tensile Strength, MPa | Yield Strength, MPa | Elongation |
| 415 min | 205 min | 30 min |
Alloy Steel P9 Seamless Pipes
Alloy Seamless Pipes (ASTM A335 Grade P91 NACE) offered by us are made available in ASTM A335 Grades. Made as per IBR standards, these are mainly used in boiler operations. Further, our expertise lies in offering these pipes in various size range as well as in customized parameters as per boiler piping requirements. Sourced from quality conscious manufacturers, we also offer our clients the option of adding their own mark on them.
Alloy Steel P9 Seamless Pipes Specifications |
||
| Specifications | : | ASTM A 335 ASME SA 335 |
| Dimensions | : | ASTM, ASME and API |
| Size | : | 1/8″NB TO 30″NB IN |
| Schedule | : | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Length | : | Within 13500mm |
| Type | : | Seamless / Fabricated |
| Form | : | Round, Hydraulic Etc |
| Length | : | Single Random, Double Random & Cut Length. |
| End | : | Plain End, Beveled End, Treaded |
Alloy Steel P9 Pipes Chemical Composition
| Alloy Steel P9 | C | Cr | Mn | Mo | P | S | Si |
| 0.05 – 0.15 | 0.90 – 1.10 | 0.30 – 0.60 | 0.90 – 1.10 | 0.025 max | 0.025 max | 0.25 – 1.00 |
Alloy Steel P9 Pipe Mechanical Properties
| Tensile Strength, MPa | Yield Strength, MPa | Elongation |
| 415 min | 205 min | 30 min |
Alloy Steel P11 Pipe
Alloy Steel Pipes (ASTM A335 P11) offered by us are made as per IBR standards and are used mainly for boiler operations. We source these seamless pipes in varied size range. Further, we can also get these customized as per boiler piping requirements. For ensuring in them optimum quality standards, we source these from quality manufacturers. We also offer clients of having their own mark on them.
Alloy Steel P11 Seamless Pipes Specifications |
||
| Specifications | : | ASTM A 335 ASME SA 335 |
| Dimensions | : | ASTM, ASME and API |
| Size | : | 1/8″NB TO 30″NB IN |
| Schedule | : | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Length | : | Within 13500mm |
| Type | : | Seamless / Fabricated |
| Form | : | Round, Hydraulic Etc |
| Length | : | Single Random, Double Random & Cut Length. |
| End | : | Plain End, Beveled End, Treaded |
Alloy Steel P11 Pipes Chemical Composition
| Alloy Steel P11 | C | Cr | Mn | Mo | P | S | Si |
| 0.05 – 0.15 | 1.00 – 1.50 | 0.30 – 0.60 | 0.44 – 0.65 | 0.025 max | 0.025 max | 0.50 – 1.00 |
Alloy Steel P11 Pipe Mechanical Properties
| Tensile Strength, MPa | Yield Strength, MPa | Elongation |
| 415 min | 205 min | 30 min |
Alloy Steel P91 Pipe
Alloy Seamless Pipes (ASTM A335 Grade P91 NACE) offered by us are made available in ASTM A335 Grades. Made as per IBR standards, these are mainly used in boiler operations. Further, our expertise lies in offering these pipes in various size range as well as in customized parameters as per boiler piping requirements. Sourced from quality conscious manufacturers, we also offer our clients the option of adding their own mark on them.
Alloy Steel P91 Seamless Pipes Specifications |
||
| Specifications | : | ASTM A 335 ASME SA 335 |
| Dimensions | : | ASTM, ASME and API |
| Size | : | 1/8″NB TO 30″NB IN |
| Schedule | : | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Length | : | Within 13500mm |
| Type | : | Seamless / Fabricated |
| Form | : | Round, Hydraulic Etc |
| Length | : | Single Random, Double Random & Cut Length. |
| End | : | Plain End, Beveled End, Treaded |
Alloy Steel P91 Pipes Chemical Composition
| Alloy Steel P91 | C | Cr | Mn | Mo | P | S | Si |
| 0.08-0.12 | 8.00 – 9.50 | 0.30-0.60 | 0.85 – 1.05 | 0.020 max | 0.010 max | 0.20 -0.50 |
Alloy Steel P91 Pipe Mechanical Properties
| Tensile Strength, MPa | Yield Strength, MPa | Elongation |
| 585 min | 415 min | 20 min |
Outside Diameter & Tolerance
| ASTM A450 | Hot rolled | Outside Diameter, mm | Tolerance, mm |
| OD≤101.6 | +0.4/-0.8 | ||
| 101.6＜OD≤190.5 | +0.4/-1.2 | ||
| 190.5＜OD≤228.6 | +0.4/-1.6 | ||
| Cold Drawn | Outside Diameter, mm | Tolerance, mm | |
| OD＜25.4 | ±0.10 | ||
| 25.4≤OD≤38.1 | ±0.15 | ||
| 38.1＜OD＜50.8 | ±0.20 | ||
| 50.8≤OD＜63.5 | ±0.25 | ||
| 63.5≤OD＜76.2 | ±0.30 | ||
| 76.2≤OD≤101.6 | ±0.38 | ||
| 101.6＜OD≤190.5 | +0.38/-0.64 | ||
| 190.5＜OD≤228.6 | +0.38/-1.14 | ||
| ASTM A530 & ASTM A335 | NPS | Outside Diameter, inch | Tolerance, mm |
| 1/8≤OD≤1-1/2 | ±0.40 | ||
| 1-1/2＜OD≤4 | ±0.79 | ||
| 4＜OD≤8 | +1.59/-0.79 | ||
| 8＜OD≤12 | +2.38/-0.79 | ||
| OD>12 | ±1% |
